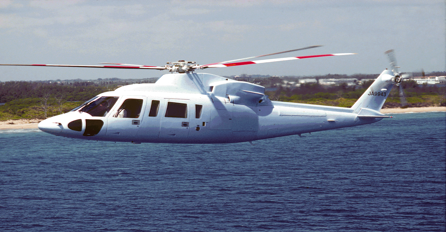

S-76® Helicopter

The gold standard of its class.

  • Product Introduction
  • Technical Specification
  • Photo Gallery

  • S-76® HELICOPTER LEGACY

    The legendary S-76®helicopter operates successfully in more than 40+ countries on five continents, fulfilling its many missions in varied environmental conditions found worldwide.





    S-76A, A+, A++

    309 Produced


    S-76B

    103 Produced


    S-76C

    43 Produced



    S-76C+

    148 Produced


    S-76C++

    212 Produced


    S-76D

    40+ In Completion

    824 aircraft delivered, over 6.6 million flight hours

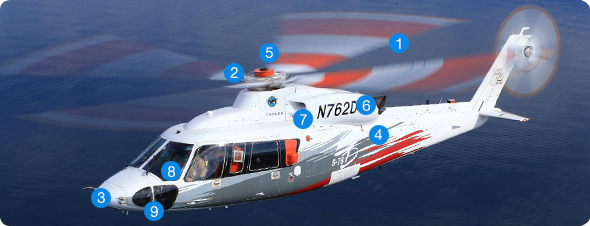

    S-76D™ Helicopter

    The next step in helicopter technology



    【Overview】The S-76D helicopter is truly the next step in helicopter technology, setting a new standard of excellence that S-76®helicopter operators have come to expect. Power and performance are enhanced by all composite main rotor blades and optimized Pratt & Whitney Canada PW210S engines with dual FADEC controls. Its quiet tail rotor will allow for reduced external acoustic signature and gain acceptance with the communities where it operates. Pilots will appreciate the state-of-the-art integrated Thales cockpit, its increased range and its ability to launch into known icing conditions. With the increased measures for a quieter cabin, passengers will enjoy a heightened travel experience.



    PW210S ENGINE RELIABILITY AND EFFICIENCY





    Rugged, reliable engine

    Mature TBO 3,500 hrs

    On-condition HSI

    Simple rugged turbo-machine with un-cooled high pressure turbine blade



    Designed optimally for the S-76D™ helicopter, leveraging PW200 series experience

    PW200 fleet flight hours: 1.3M

    Best-in-class power/weight

    Best-in-class fuel burn

    ~ 10% better specific fuel consumption than PT6B-36 on S-76B™

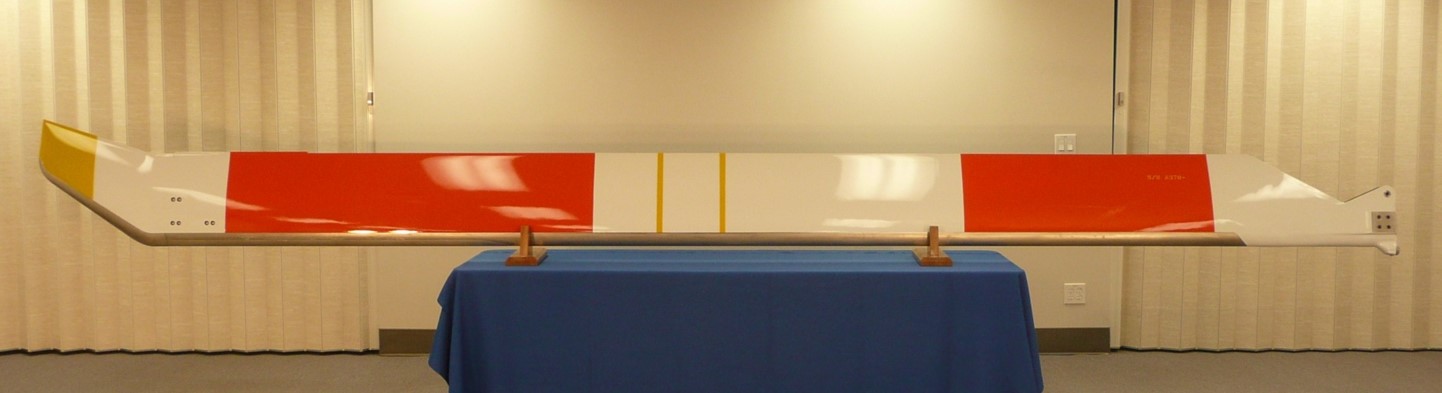

    MAIN ROTOR BLADES





    New airfoil for optimized lift

    Flaw tolerant, composite spar

    Integral tip cap

    Provisioned for de-ice





    SMOOTHER & QUIETER EXPERIENCE FOR PASSENGERS AND PUBLIC

    The “Quiet-Zone™” gearbox reduces internal noise by 2-4 dBA, improving communication and comfort

    Active vibration control system will provide a smoother ride, enhancing cabin environment

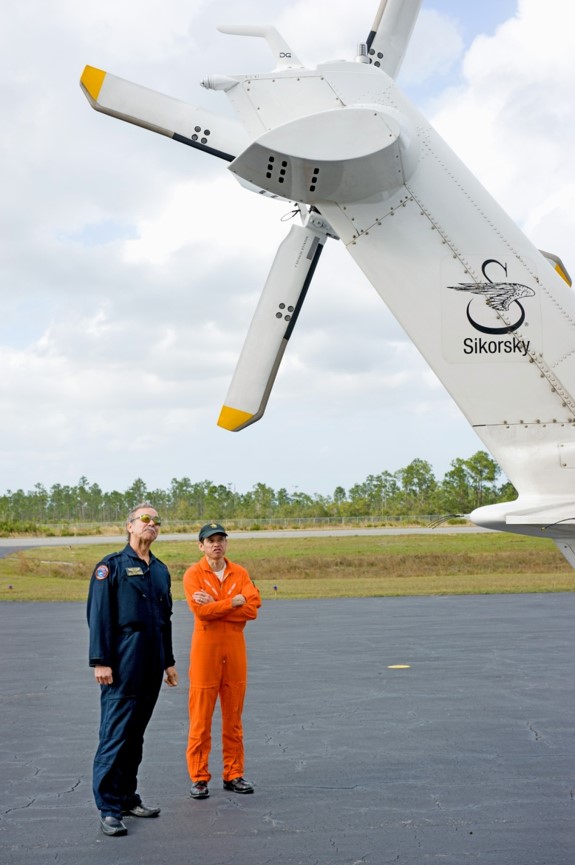

    Incorporation of Quiet Tail Rotor® technologies

    The S-76D helicopter will achieve reduced noise, providing improved public acceptance

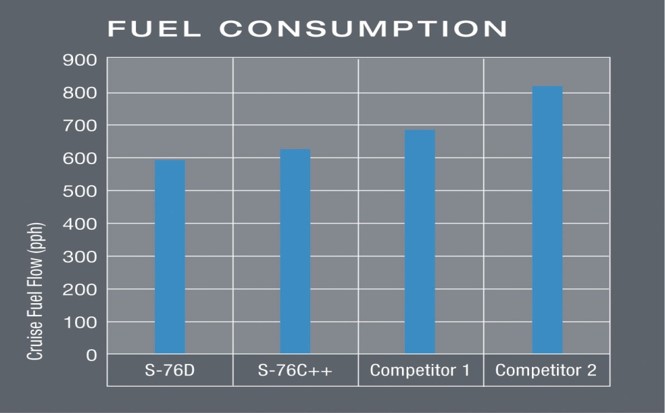

    Best in Class Fuel Efficiency



    Best in class direct operating costs

    >30% less average fuel flow than PT6C-67C

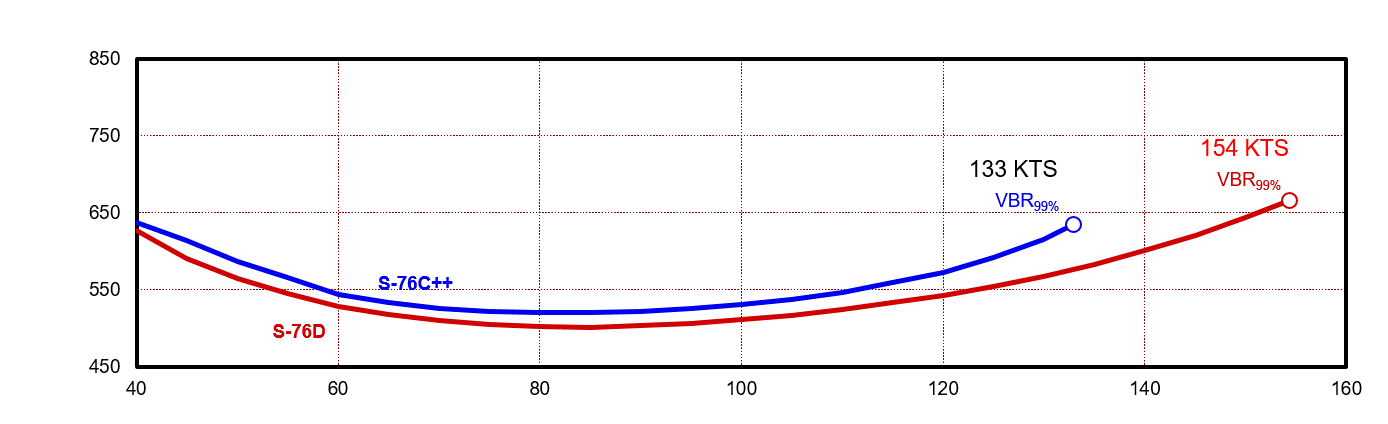

    Increase Fuel Efficiency near top velocity






















  • S-76D™ Helicopter


    Powerplant and fuel system

    Number of Engines 2
    Engine Type Pratt & Whitney Canada PW210S
    Take Off Power, 5 minutes 1,077 shp 803 kw
    Maximum OEI power (30 sec) 1,210 shp 903 kw
    Maximum Continuous Power (MCP) 1,062 shp 803 kw
    Performance
    Maximum Gross Weight 11,875 lbs 5,386 kg
    Maximum Cruise Speed 155 kts 287 kph
    Maximum Range - No Reserve 472 nm 874 km
    Hover In-Ground Effect Ceiling 10,540 ft 3,103 m
    Hover Out-of-Ground Effect Ceiling 4,930 ft 1,600 m
    OEI Service Ceiling 8,235 ft 2,530 m
    AEO Service Ceiling 15,000 ft * 4,572 m *

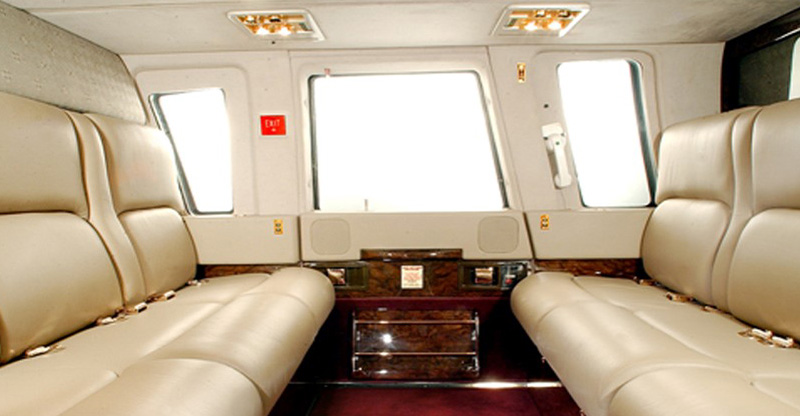

    Accommodations
    Cabin Length 7.92 ft 2.41 m
    Cabin Width 6.25 ft 1.93 m
    Cabin Height 4.42 ft 1.35 m
    Cabin Area 50 ft2 4.65 m2
    Cabin Volume 204 ft3 5.78 m3
    Baggage Volume 38 ft3 1.08 m3
    Seating 12

    * Operational Limit
