Falcon 900LXPerfect service, beyond your imagination.

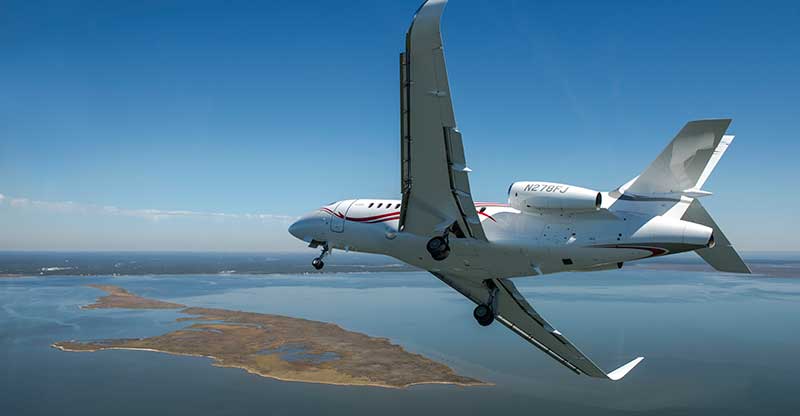

Falcon 900LX

Best-in-class performance, comfort and efficiency...

  • Product Introduction
  • Technical Specification
  • Photo Gallery
  • Overview



    The ongoing refinement ofa pioneering idea
    The latest in the immensely popular Falcon 900 series, this large-cabin trijet stands alone in its class for performance, comfort and efficiency.
    Since its inception, more than 500 Falcon 900 aircraft have been delivered, each generation refining and building on the strengths of the previous, establishing an industry benchmark for longevity, durability, reliability and long-term value retention.







    Capabilities that make it the leader in its class

    Apply the latest aerodynamic technology and advanced avionics to an already ultra-efficient trijet, and you have an aircraft that will take you places its competitors cannot, like short runways and hot-and-high airports.
    You also gain range and efficiency. Compared with earlier Falcon 900s, the 900LX delivers a range of 4,750 nm (8,800 km), and consumes less fuel.






    The advantages of trijetdesign

    While its ramp appeal is undeniable, the beauty of the 900LX’s trijet design enhances comfort and performance. In addition to allowing a large cabin within a compact fuselage, it lowers critical speeds for safer landings and superior short-field agility.
    It’s more maneuverable on the tarmac, requires less hangar space – and it provides greater peace of mind and more direct routing on long routes over water.





    Performance

    Performance that makes the world yours


    With High-Mach Blended Winglets extending its range to 4,750 nm (8,800 km),

    the 900LX crosses any ocean or continent, and sometimes one of each, traveling routes like London-Seattle with nonstop ease. It will fly you from Chicago Executive

    to Geneva, or just about anywhere on nearly one-third less fuel than its nearest competitor.



    Fuel consumption up to 40% lower than competitors shrinks operating costs and carbon footprint.








    A wide flight envelope


    The typical approach speed of the 900LX is 110 knots (204 kph), more than 10 knots slower than the nearest competitor, providing access to shorter runways and higher margins of safety on landing. At the other end of the envelope, top speed is a brisk Mach 0.87, with a typical cruise speed of Mach 0.80. Like all Falcons, the 900LX

    has no speed limitations in turbulence – a testament to efficient design and rugged construction

    Outstanding mission flexibility


    The 900LX’s high maximum landing weight allows short hops followed by transoceanic leaps, without refueling. Fly Washington, D.C. to Geneva, for example, with a quick stop in New York. Or fly six from Paris to London, then on to New York, with fuel to spare. Beyond saving time, you save money, avoiding the need to buy more costly fuel away from home.

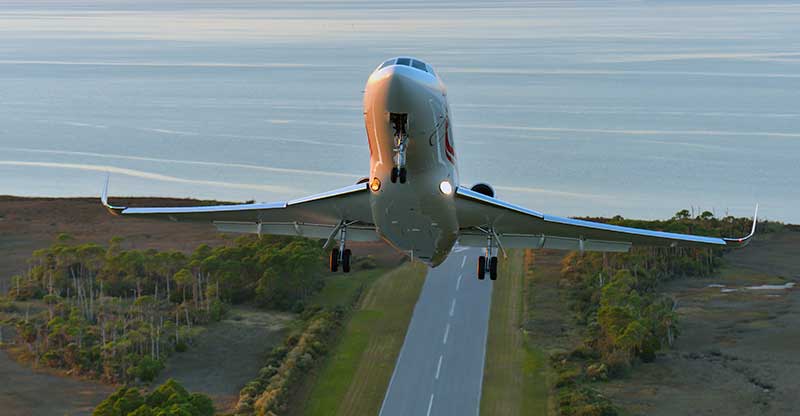

    For challenging fields and conditions


    Fueled for a 3,000 nm (5,556 km) trip, the Falcon 900LX can depart runways of less than 4,000 feet (1,219 m) at sea level and less than 6,000 feet (1829 m) in Denver-like settings a mile above sea level. It also gives you access to challenging airports, such as those at London City, Aspen, St. Moritz, Gstaad and Toluca. Even on warm days, the 900LX delivers ample range from high elevations.


    Save time, save fuel


    In addition to airfield agility, Falcon’s trademark trijet design allows more direct, over-water routing. It’s an advantage that saves time and fuel, while also enhancing safety for greater peace of mind.








    Technology

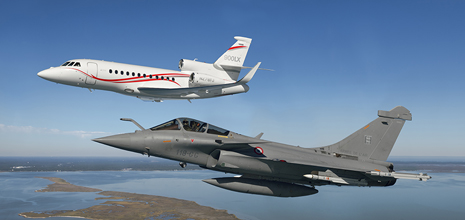

    The benefits of fighter jet heritage

    Strong yet light, agile yet smooth, powerful yet efficient. Many of the 900LX’s finer attributes result from technology developed for Dassault’s military programs.

    Like any good fighter jet, its design assures pilots of precise aerodynamic feedback, without the need for the complex supplementary systems required by other business aircraft. Handling is precise, and potential dangers are easily avoided.

    Many other design features, such as double-servo actuators adapted from Dassault fighters, further augment safety margins.


    A wing that goes even farther

    While highly efficient at high speeds, the 900LX wing is equally adept and well mannered at low speeds, which accounts for its impressive short-field performance. Leading-edge slats and double-slotted Fowler flaps deploy on approach. Airbrakes help with precise glide path control and add stopping power on the ground.

    The addition of High-Mach Blended Winglets effectively increases wingspan and lift, while reducing span-wise airflow and drag. Other benefits include reduced stall speed, improved time to climb, and an increase in range of about 200 nm (370 km), allowing the 900LX to fly farther on less fuel.

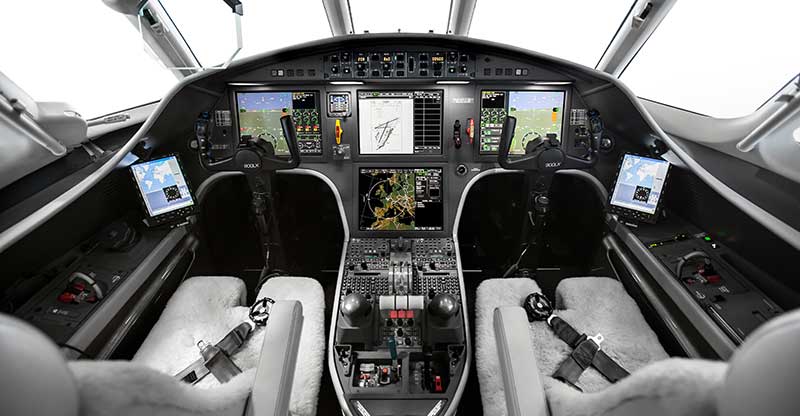

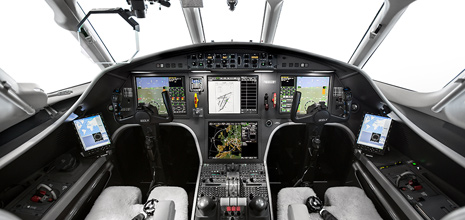

    Business aviation’s most advanced flight deck

    The EASy II flight deck dramatically improves crew coordination and situational awareness, presenting everything from flight planning and automated checklists to the aircraft’s precise position, situation and environment through an innovative graphical interface that allows pilots to work ‘eyes up’. Its head-up display incorporates an Enhanced Flight Vision System using infrared sensing to improve visibility.

    Synthetic vision gives pilot and co-pilot a virtual display of terrain based on a global topographical database. And the aircraft’s integrated airborne monitoring service, FalconBroadcast®, provides real-time notification of in-flight events and maintenance status, helping operators maximize dispatch by beginning the troubleshooting process while still in the air.

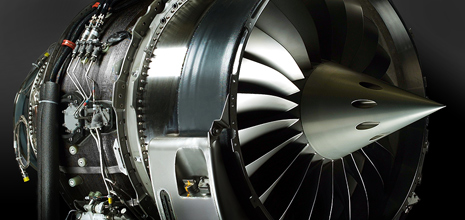

    Honeywell TFE731-60 engines: powerful and proven

    Three Honeywell TFE731-60 engines power the 900LX. Each produces 5,000 pounds (22.24 kN) of thrust at sea level up to ISA +17°C and provides unbeatable efficiency in this power range, along with a reputation for low fuel consumption and quiet operation. With more than 11,000 engines entered into service and 100 million hours of operation logged, the reliability and performance of the TFE731 series are more than proven.

    Cabin


    The dimensions of comfort



    FalconCabin HD+ Advanced cabin management

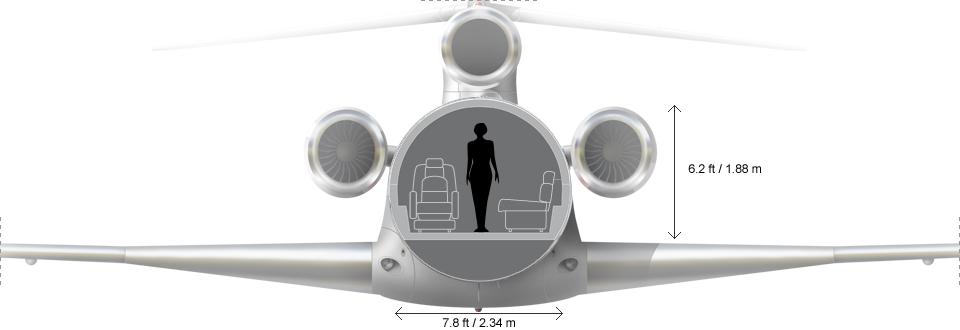

    The 900LX cabin measures 6 feet, 2 inches (1.88 m) tall and 7 feet 8 inches (2.34 m) wide – dimensions that translate into easy stand-up, walk-about comfort. With 6 feet 3 inches (1.91 m) of width available at floor level, the aisle is broad and individual seats offer plenty of recline.At 33 feet 2 inches (10.11 m), the cabin’s length gives you three distinct lounge areas for work, rest and relaxation, allowing you to optimize the use of your time on long-range flights. And while the 900LX typically seats 12 to 14 passengers, you will likely fly with fewer on long-range missions, so go ahead and take advantage of the adaptable seating to make up to six comfortable berths.


    Passengers onboard the 900LX enjoy a full complement of entertainment and connectivity tools in an exceptionally user-friendly format. FalconCabin HD+ puts advanced cabin control at their fingertips, from anywhere in the cabin, via iPhone®,

    iTouch® or iPad®.

    Among the system’s many features is its SkyBox™ wireless media server with vast iTunes® video and music capacity. Falcon 900LX customers can also opt for SATCOM voice and broadband data service.

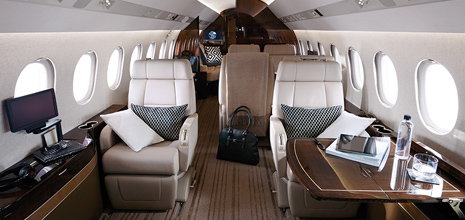

    Quiet comfort, quality craftsmanship


    Your one-of-a-kind interior







    Falcon cabins are renowned for their elegance, comfort and phenomenally quiet sound levels. The 900LX upholds this proud tradition.


    Reflections of modern styling, these interiors are created with the precision of digital manufacturing combined with the best of Old World craftsmanship, using the finest materials available.


    The process of creating an interior that reflects your taste is easier and more streamlined than ever before, thanks to our new interactive design centers at Teterboro, New Jersey and Le Bourget, Paris.


    Equipped with Dassault’s proprietary CATIA software and staffed by world-class design professionals, these centers help customers make informed and confident choices by enabling them to envision their interiors and examine features in actual airplanes and mockups, before selecting from our beautiful array of fabrics, leathers, carpets, veneers, electronics, equipment and accessories.








  • Every inch a legend


    Trijet design largely accounts for the distinctive ramp appeal of the Falcon 900LX.

    But the beauty of this proven performer runs through every aspect of its rugged airframe, advanced aerodynamics, cutting-edge avionics and time-tested systems. Now in its seventh iteration, this is a legend in the making.

    Undeniable ramp appeal, unrivalled efficiency and performance.




    Business Jet 猎鹰900LX三引擎喷气公务机
    Falcon 2000lx Business Jet
    外观 External
    高度 Height 6.17 英尺(ft) 1.88 米(m)
    长度 Length 33.2 英尺(ft) 10.11 米(m)
    翼展 Wing Span 英尺(ft) 米(m)
    客舱 Internal
    标准客座 Typical Number of Pax
    客舱高度 Cabin Height 6.17 英尺(ft) 1.88 米(m)
    客舱长度 Cabin Length 33.2 英尺(ft) 10.11 米(m)
    客舱宽度 Cabin Width 7.67 英尺(ft) 2.34 米(m)
    客舱容量 Cabin Volume 立方英尺(cu ft) 立方米 (cu m)
    性能 Performance
    发动机 Engine 3x TFE731-60
    推力(海平面-标准大气) SL-ISA Thrust 5,000 磅(lb) 千牛顿(kN)
    航程(位乘客+位机组) 4,750 海里(NM) 8,800 公里(km)
    最大巡航速度 Max Cruise Speed 370 节(KTAS) 685 公里/小时(km/h)
    最大起飞重量 Max Takeoff Weight 49,000 磅(lb) 22,225 公斤(kg)
    最大着陆重量 Max Landing Weight 44,500 磅(lb) 20,185 公斤(kg)
    零燃油重量 Zero Fuel Weight 磅(lb) 公斤(kg)
    最大运行高度 Max Operating Altitude 英尺(ft) 米(m)
    着陆滑行距离 Landing Field Length 英尺(ft) 米(m)
